PROCITY Serrubloc Ground Socket for Posts D 114 mm and 160 mm – The Universal Removable System
Product Advantages:
- Universal Fit: Compatible with post diameters Ø 76, Ø 90, Ø 102, and Ø 114 mm—a single solution for all common sizes.
- Optimal Durability: 102% galvanized ground socket combined with an internal V2A stainless steel mechanism for supreme weather resistance.
- Self-Cleaning Design: Rainwater automatically drains due to the ground-level installation; a removable dirt and sand reservoir allows for easy cleaning.
- Maximum Safety: The firm, lockable obturator (cap) has no through-hole, eliminating tripping and injury risks when the post is removed.
Product Description:

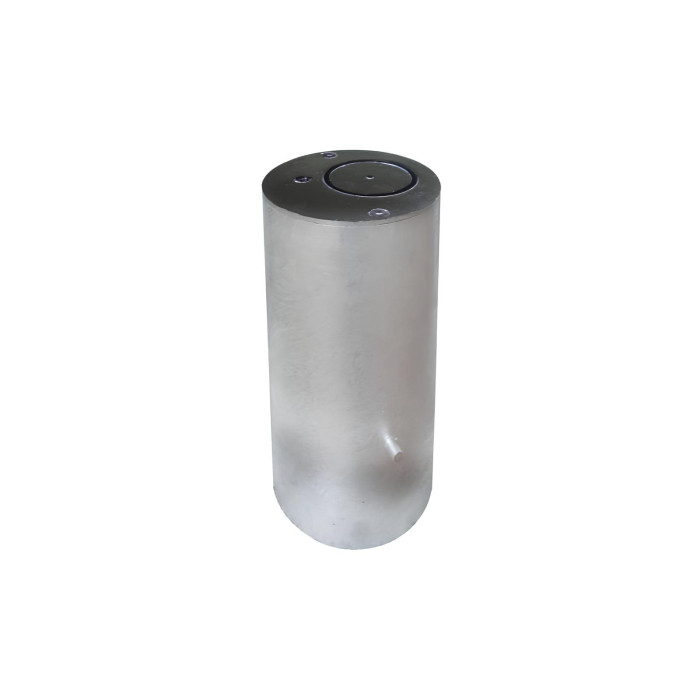

The Serrubloc 21 Universal Removable System for stainless steel posts is PROCITY's premium solution for flexible post mounting. Designed to accommodate all common stainless steel post diameters, the Serrubloc 21 meets the highest demands for security, longevity, and ease of use.
High Corrosion Resistance
The fully galvanized casing combined with an internal mechanism made of V2A stainless steel ensures optimal protection against rust and weather. Even after years of outdoor use, the mechanism remains perfectly functional, offering exceptional peace of mind.

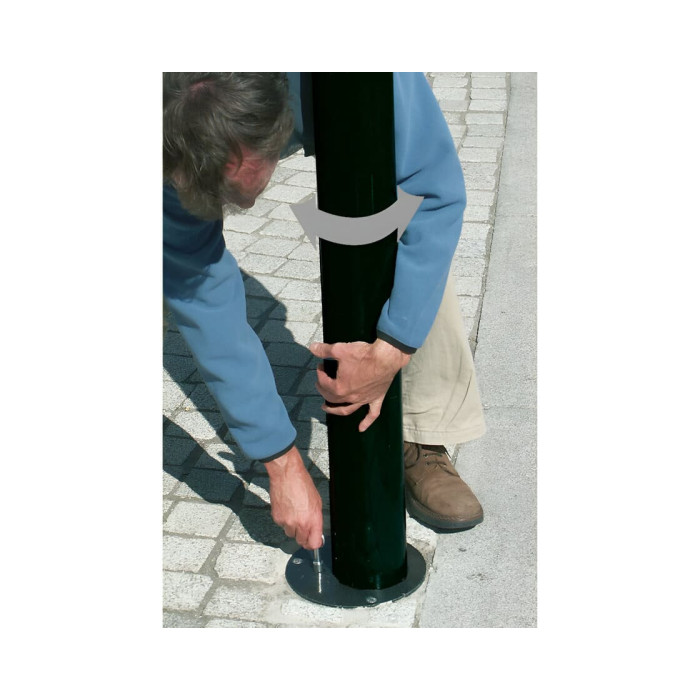

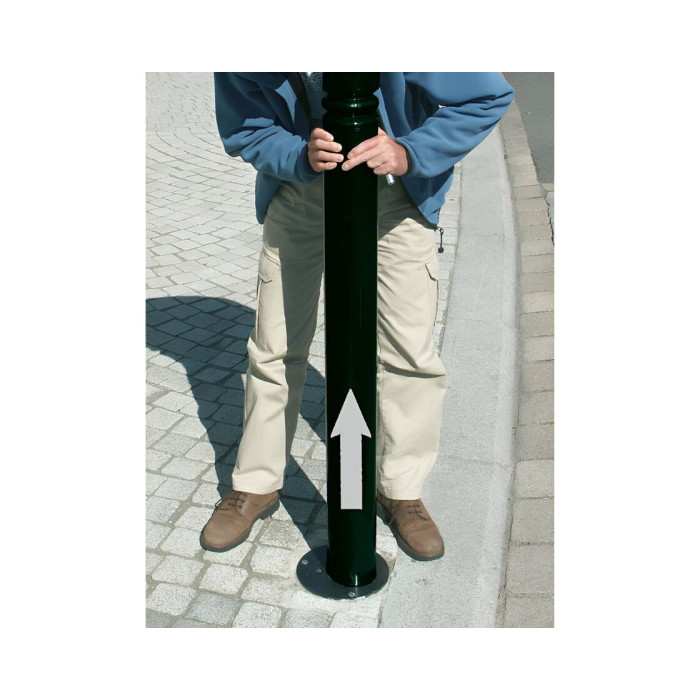

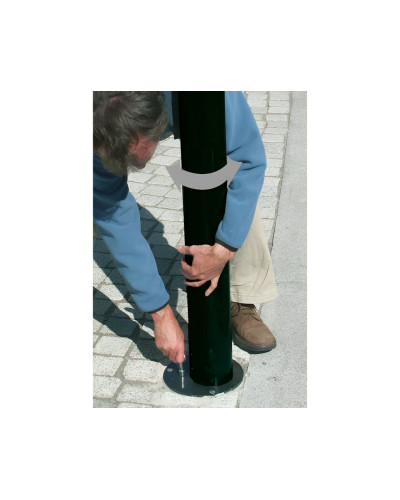

This system allows the post to be quickly and easily removed when necessary. Crucially, when the post is out, the ground unit provides a safe, flush, trip-hazard-free surface. The cap is securely locked using a triangular lock.
INCAPCORP is your official and reliable dealer for high-quality PROCITY products.
Technical Specifications:
- Overall Height: 272 mm
- Height Above Ground: 0 mm (flush mounting)
- Embedding Depth: 300 mm
- Construction Type: Fixed
- Mounting Type: FOR CONCRETE EMBEDDING
- Diameter (overall): 219 mm
- Material: Steel, hot-dip galvanized (Mechanism: V2A Stainless Steel)
- Finish: Visible part painted black
- Head Style: Flat
- Chain Eyes: Without eyelet

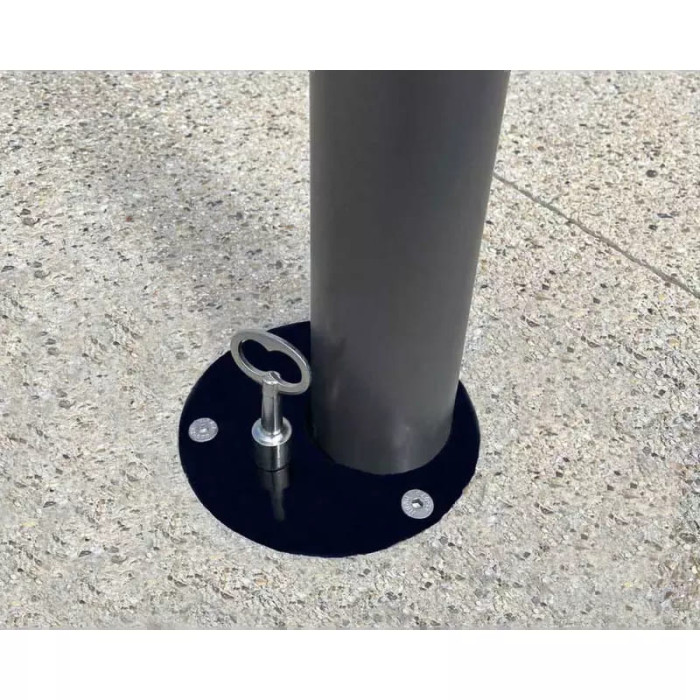

- Lock Type: With triangular lock
- Accessories: None specified (refer to post for accessories)
- Lead Time (Production time in business days): 20 (Typical)
Application Areas:

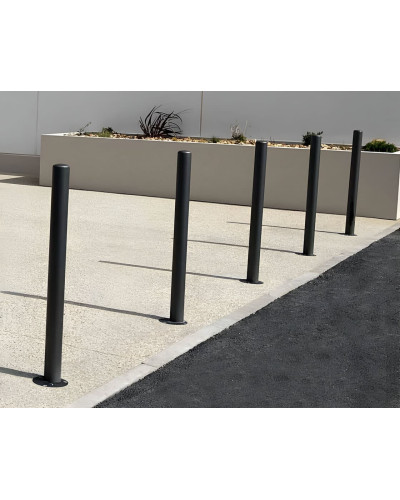

The Serrubloc Ground Socket is ideal for any area where posts are required temporarily or where flexible access control is necessary. This includes: pedestrian zones, market squares, public parks, access roads to fire lanes or delivery zones, and any private area where the option to quickly remove a post is a necessity without leaving a trip hazard.
Installation Guide:
Professional Installation (For Concrete Embedding)
For a permanently secure and flush-mounted fitting, professional concrete embedding is highly recommended. A qualified contractor will follow these steps:
- Excavation: Dig a foundation hole with the required depth (300 mm minimum) and width, ensuring the ground is stable.
- Positioning: Place the ground socket into the hole and use a spirit level to ensure it is aligned exactly at 0 mm above ground level (flush with the finished surface).
- Concreting: Fill the hole with concrete, ensuring the socket does not shift. The concrete surface must finish flush with the top edge of the ground socket.
- Curing and Testing: Allow the concrete to fully cure. Afterwards, test the removal mechanism's function with a compatible post and the triangular lock.
Alternative Simple and Safe DIY Installation
DIY installation is possible for experienced individuals, but it requires careful preparation and adherence to the correct embedding depth. Please note that the concrete mix and required tools are not included with the product.
- Preparation: Excavate a hole of approximately 300 mm deep and 300 mm in diameter. Ensure a firm base.
- Alignment: Place the socket into the hole. Use formwork or bracing to secure the socket so that the top edge is perfectly flush with the final ground surface (0 mm above ground).
- Pour Concrete: Fill the hole with concrete, ensuring no concrete enters the locking mechanism. Smooth the surface.
- Curing: Allow the concrete to cure completely before inserting the first post. This is vital for full stability and longevity.
