Description Retractable Bollard Ø 70 x 70 mm Lift-and-Tilt white, half-cylinder lock
Comprehensive Analysis and Application Areas: Retractable Bollard Ø 70 x 70 mm white with Lift-and-Tilt Technology and Half-Cylinder Lock
The integration of barrier technology into modern urban planning is paramount for ensuring safety, managing traffic flow, and protecting private properties. In densely populated urban areas, industrial zones, and private estates, the presence of effective barriers such as the Absperrpfosten Ø 70 x 70 mm with its innovative "HEBE-KIPP" mechanism plays a crucial role in delineating spaces and controlling access. These barriers not only serve as physical deterrents to unauthorized entry but also contribute significantly to liability prevention by clearly marking restricted areas. The ability to temporarily deploy or retract these posts allows for flexible traffic management, accommodating emergency services while maintaining public safety.
Moreover, the Absperrpfosten is designed to withstand various environmental conditions and potential impacts, ensuring longevity and reliability. Its robust construction is essential in preventing accidents that could arise from unregulated access to sensitive zones such as fire lanes or private property. The incorporation of a Halbzylinderschloss further enhances security by providing a reliable locking mechanism that deters tampering. Thus, the Absperrpfosten Ø 70 x 70 mm emerges as an indispensable asset in urban infrastructure, balancing accessibility with stringent safety standards.
Technical Key Features and Structural Advantages
- Removable barrier post featuring "Lift-and-Tilt" (HEBE-KIPP) technology for easy operation.
- Unlockable via a key mechanism for secure access control.
- Fixed connection with a ground sleeve ensures stability during use.

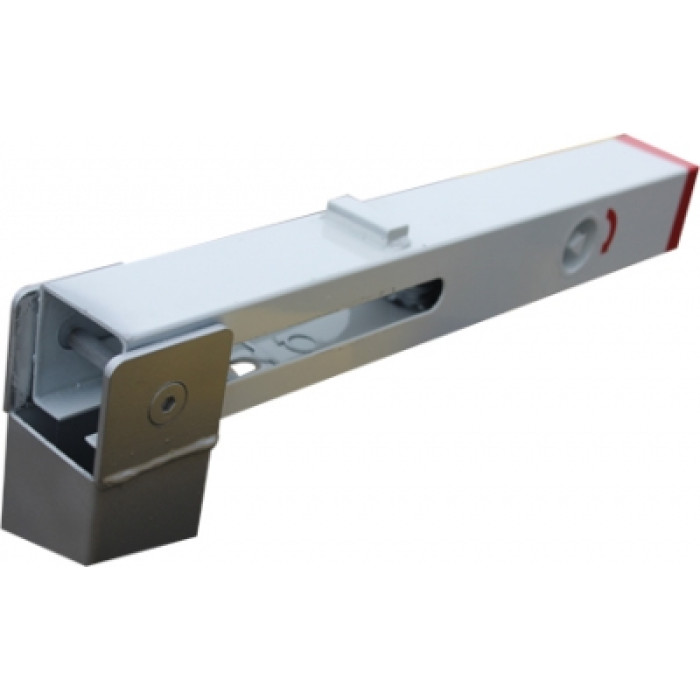

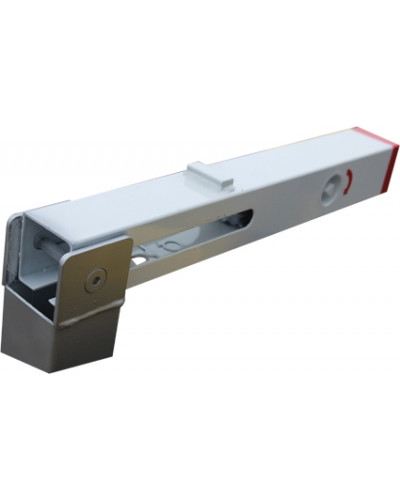

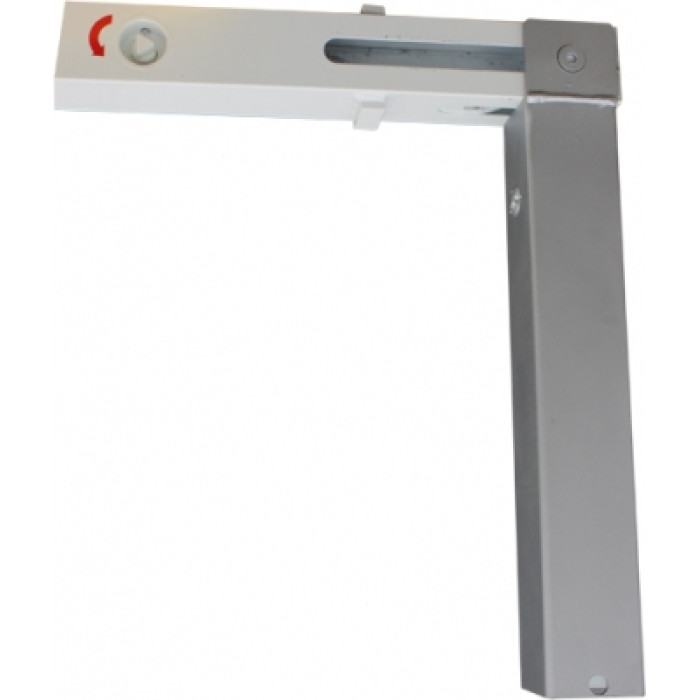

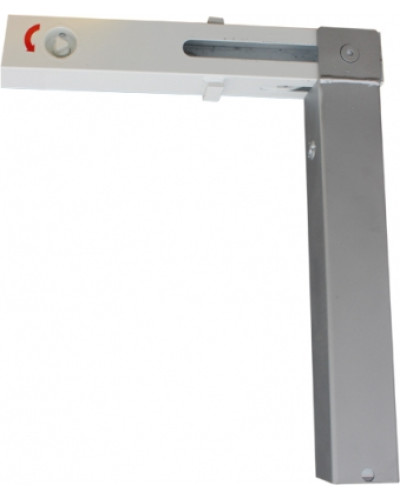

- Lateral flat iron reinforcements provide additional support when folded down.
- Self-locking feature upon insertion into the ground sleeve enhances security.

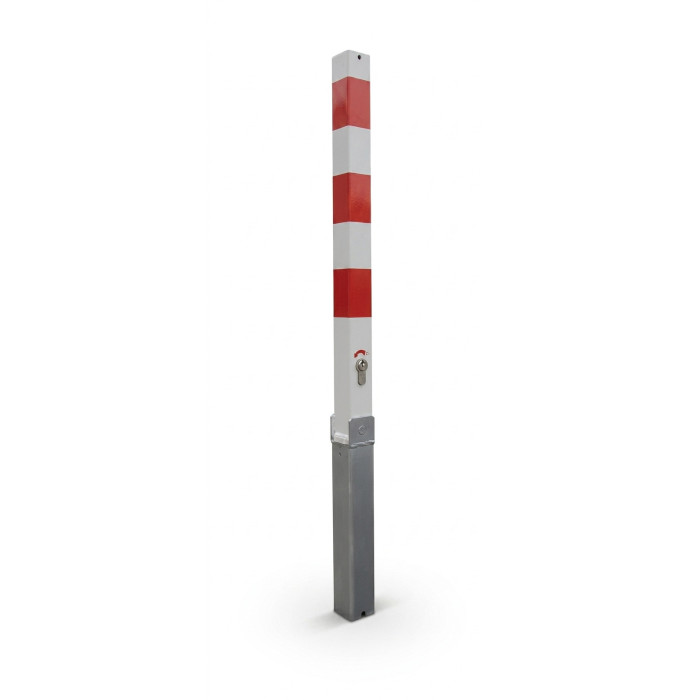

- Constructed from high-quality steel with options for hot-dip galvanization or powder coating in white/red (reflective).
- Dimensions: 70x70 mm cross-section; height above ground: 1000 mm; total length: 1400 mm.

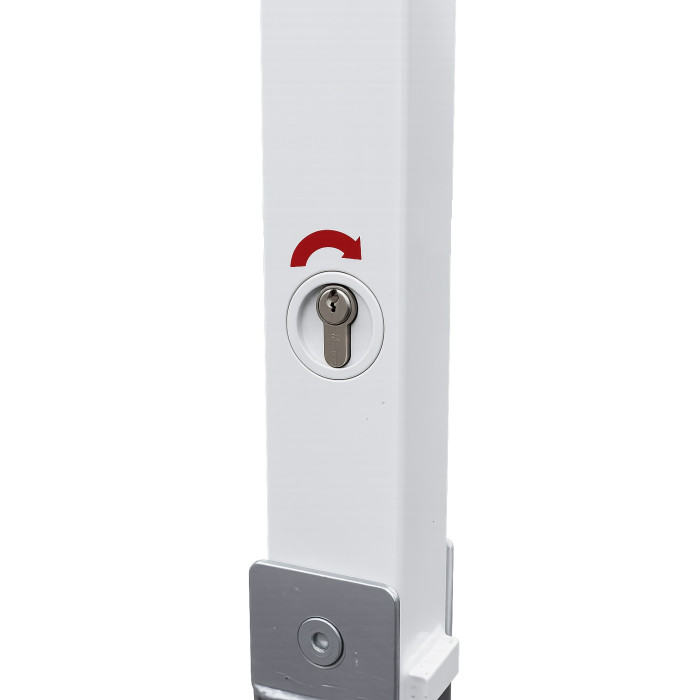

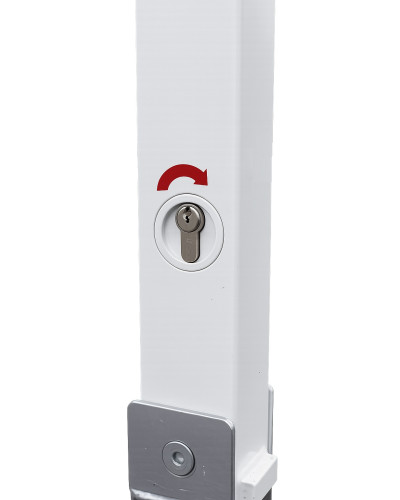

- Closure system includes a triangular lock compliant with DIN 3223 standards and a half-cylinder lock for added security.
- Accessory available: Triangular key (Order No. INC-6.001) sold separately.
Technical Aspects: Static Load Capacity and Impact Resistance
The design of the Absperrpfosten Ø 70 x 70 mm incorporates advanced engineering principles that ensure exceptional static load capacity and impact resistance. The square cross-section provides uniform strength distribution across all sides, allowing it to withstand significant lateral forces without compromising structural integrity. This is particularly important in environments where vehicles may inadvertently collide with the post; its robust construction minimizes damage while protecting surrounding infrastructure.
The "HEBE-KIPP" mechanism facilitates effortless operation while maintaining high stability when deployed. The lateral flat iron reinforcements act as an effective safeguard against accidental impacts when the post is in its folded position, ensuring that it remains securely anchored even under duress. Furthermore, the self-locking feature upon insertion into the ground sleeve prevents unauthorized removal or displacement of the post during critical operational periods. This combination of features not only enhances user convenience but also reinforces safety protocols within urban settings where traffic dynamics can be unpredictable.
Material Quality, Corrosion Protection, and Durability
The Absperrpfosten Ø 70 x 70 mm is constructed from premium-grade steel that undergoes hot-dip galvanization to provide superior corrosion resistance. This treatment ensures that the post remains resilient against harsh weather conditions and environmental factors that could lead to deterioration over time. Additionally, the optional powder coating in reflective white or red not only enhances visibility but also adds an extra layer of protection against chemical exposure and UV degradation.
The total length of 1400 mm is strategically designed to optimize ground stability while providing adequate frost protection during colder months. This extended length allows for deeper embedding into concrete foundations, which mitigates risks associated with soil movement due to freeze-thaw cycles common in temperate climates. Compliance with visibility regulations ensures that these posts are easily identifiable even under low-light conditions, thereby enhancing overall safety for both pedestrians and vehicular traffic alike.
Installation, Maintenance, and FAQ
The installation process for the Absperrpfosten involves concreting it into place at designated locations where temporary access control is required. It is essential to ensure proper alignment during installation to maintain functionality and aesthetic appeal. Long-term maintenance includes regular inspections of locking mechanisms to ensure they remain operational; lubrication may be necessary periodically to prevent rusting or jamming due to environmental exposure.
Frequently Asked Questions:
- Question: How do I unlock the barrier post?
- Answer: The post can be unlocked using a triangular key specifically designed for this purpose.
- Question: Is there an option for reflective coating?
- Answer: Yes, there are options available for powder coating in reflective white or red finishes.
