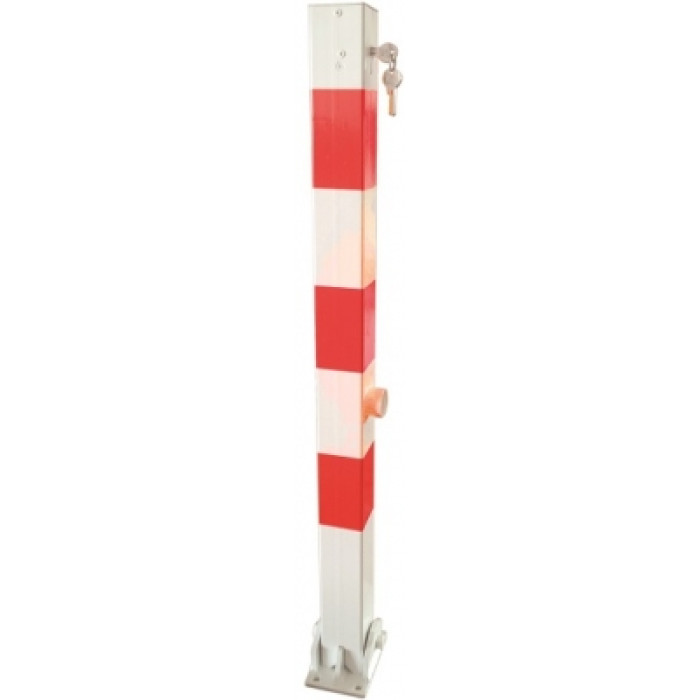

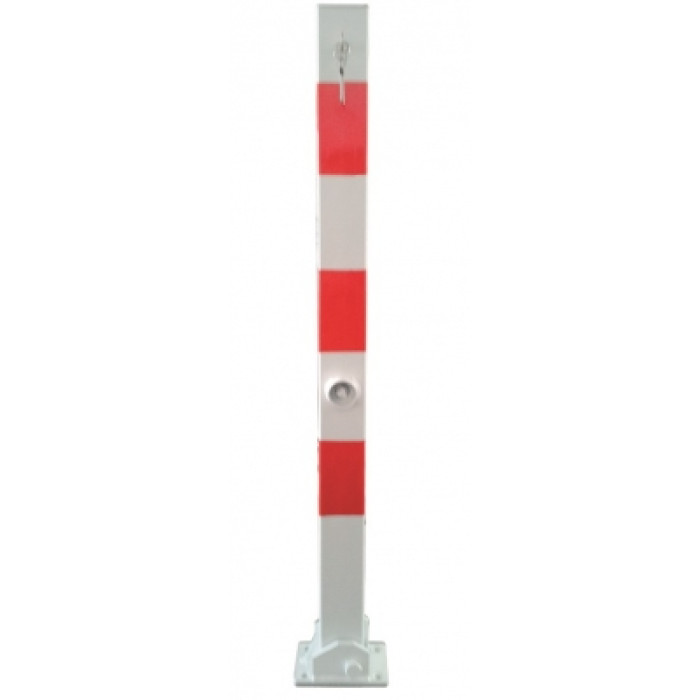

Folding Bollard Ø 70 x 70 mm with Triangular Key and Half Cylinder

Description Bollard Ø 70x70 mm | Foldable | Triangular Lock + Half Cylinder

Comprehensive Analysis and Application Areas: Absperrpfosten Ø 70x70 mm, umlegbar Dreikant+Halbzylinder, gleichschließend

The significance of barrier technology in contemporary urban planning, industrial zones, and private properties cannot be overstated. As cities evolve and the density of traffic increases, the need for effective traffic management solutions becomes paramount. The Absperrpfosten Ø 70x70 mm, umlegbar with a Dreikant+Halbzylinder locking mechanism, serves as a critical component in ensuring the safety of pedestrians and vehicles alike. These barriers are essential for delineating boundaries, controlling access to restricted areas, and protecting vulnerable road users from potential hazards. In high-traffic environments or during temporary closures, such barriers not only enhance safety but also mitigate liability risks associated with accidents or unauthorized access. By clearly marking off areas that require restricted access—such as emergency routes or private property—these posts play a vital role in urban infrastructure management.

Technical Key Features and Structural Advantages

• Material: Constructed from fire-galvanised steel, the Absperrpfosten is available with an optional powder coating for enhanced durability.
• Colour Options: Available in classic fire-galvanised steel or striking white-red reflective variants to improve visibility.
• Dimensions: The post measures 70x70 mm with a total height of 1000 mm above ground level, providing a robust presence that is easily noticeable.
• Locking Mechanism: Features a three-point locking system compliant with standard 3223 and includes a half-cylinder lock measuring 30/10 for added security.
• Design Variants: The post is designed to be foldable and can be supplied with a base plate (150x100 mm) for bolting down; it is also available as removable or foldable with an integrated ground sleeve (length: 400 mm).
• Accessories: A separate triangular key (Order No. INC-6.001) is recommended for operation; additionally, an anchor plate for concreting-in (Order No. INC-8.011) can be ordered if required.

The technical specifications outlined above render the Absperrpfosten Ø 70x70 mm an adaptable and reliable element for traffic control and management across various applications.

Material Quality, Corrosion Protection, and Durability

The steel used in the construction of the Absperrpfosten undergoes fire galvanisation—a process that significantly enhances its corrosion resistance by creating a protective zinc layer. This treatment ensures longevity even when exposed to harsh environmental conditions such as rain, snow, or industrial pollutants. The optional powder coating further augments this protection while allowing customization in appearance to suit specific aesthetic requirements or branding needs.

The total height of 1000 mm is strategically designed to ensure optimal visibility while maintaining stability against wind loads and accidental impacts. This height also plays a crucial role in frost protection; by elevating the post above ground level, it reduces the risk of frost heave affecting its structural integrity during winter months. Furthermore, the reflective white-red colour scheme adheres to safety regulations aimed at enhancing visibility during low-light conditions—critical for preventing accidents at night or during inclement weather.

Installation, Maintenance, and FAQ

The installation process for the Absperrpfosten Ø 70x70 mm can vary based on site-specific conditions. For surfaces unsuitable for bolting due to soil composition or other factors, we recommend using an anchor plate designed for concreting-in to ensure stability over time. Regular maintenance checks are essential; these should include inspections for any signs of wear or damage due to environmental exposure or vehicular impact.

The weather resistance of this barrier system allows it to withstand extreme conditions without compromising functionality. Cleaning procedures involve simple washing with water and mild detergents to remove dirt accumulation while preserving its protective coatings. For any further inquiries regarding installation techniques or maintenance protocols specific to your application needs, our technical support team remains at your disposal.
