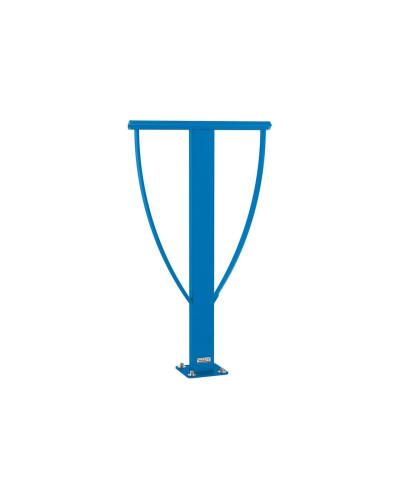

Description Backrest Lisbon, 1 bicycle, PROCITY: Metal - Enzian Blue, on floor plates.
PROCITY Lisbon Leaning Rail, 1 Bike: Metal - Gentian Blue, with Base Plates
Product Advantages
- Color: RAL 5010 (Gentian Blue)
- Structure: With base plate
- Finish: Hot-dip galvanized and coated
- Height Above Ground: 900 mm
- Structure: Steel tube 80 x 40 mm
- Mounting: For concrete embedment or on a base plate
Product Description
This space-saving leaning rail allows for the simultaneous securing of both the bicycle's frame and wheel. It's the ideal complement to the Lisbon handrail. The Lisbon leaning rail is perfect for the secure storage of a single bike and to complete the overall concept of a bicycle parking area. With a height of 900 mm, it provides ample space to park a bicycle securely. The rail is made from a sturdy 80 x 40 mm steel tube and can be mounted either for concrete embedment or on base plates, making it flexible for various applications. The **Gentian Blue** color and a hot-dip galvanized and coated finish ensure long-lasting durability and resistance to weather.
Technical Specifications
- Total Height: 900 mm
- Height Above Ground: 900 mm
- Total Width: 505 mm
- Total Depth: 40 mm
- Material: STEEL
- Finish: Galvanized and coated
- Color: Gentian Blue
- Mounting Type: ON BASE PLATES
- Number of Parking Spaces: 1 bike
- Tire Width: 40 mm
- Weight: 9 kg
- Lead Time (Production time in business days): 20
Areas of Application
The Lisbon leaning rail is ideal for bike parking areas in public spaces, shopping centers, educational institutions, and businesses to provide secure and space-saving bike parking.
Installation Instructions
Professional Installation
For a highly secure and permanent installation, concrete embedment is recommended. A professional installer will:
- Site Preparation: The installer will assess the location to ensure the ground is suitable and to identify any potential underground utilities.
- Dig a Hole: They will dig a hole of the specified size and depth as outlined in the included instructions.
- Position the Rail: The rail will be carefully placed in the hole, ensuring it is perfectly vertical and level.
- Pour Concrete: High-strength concrete will be poured to fully embed the base, providing superior stability and security against tampering.
- Final Check: After the concrete has cured, a final inspection will be performed to ensure the rail is completely secure.
Simple and Safe DIY Installation
For mounting on an existing concrete surface, you can install the rail yourself with a few simple steps:
- Position and Mark: Place the leaning rail on a flat, solid concrete surface. Use the holes in the base plates as a template to mark the drilling points.
- Drill Holes: Using a hammer drill and a masonry bit, drill holes at the marked spots. Be sure to clean out any dust.
- Secure with Anchors: Insert heavy-duty concrete anchor bolts into the holes. Place the rail over the bolts and tighten them firmly with a wrench.
- Final Check: Test the rail's stability by giving it a firm push to ensure it doesn't move or wobble. This method provides a very strong and safe mount.
