Description Procity Wartehalle Venedig, 1 Schaukasten 2000 with 1 Seitenverkleidung, L 5240 mm
PROCITY Wartehalle Venedig, 1 Schaukasten 2000 mit 1 Seitenverkleidung, L 5240 mm

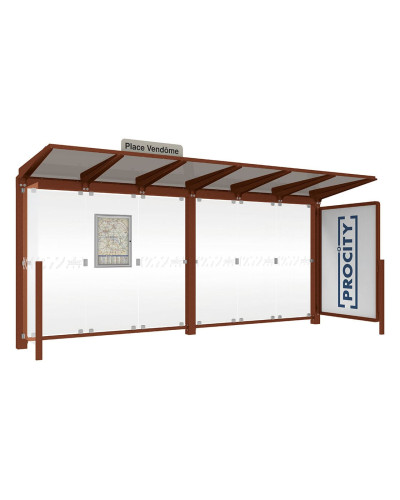

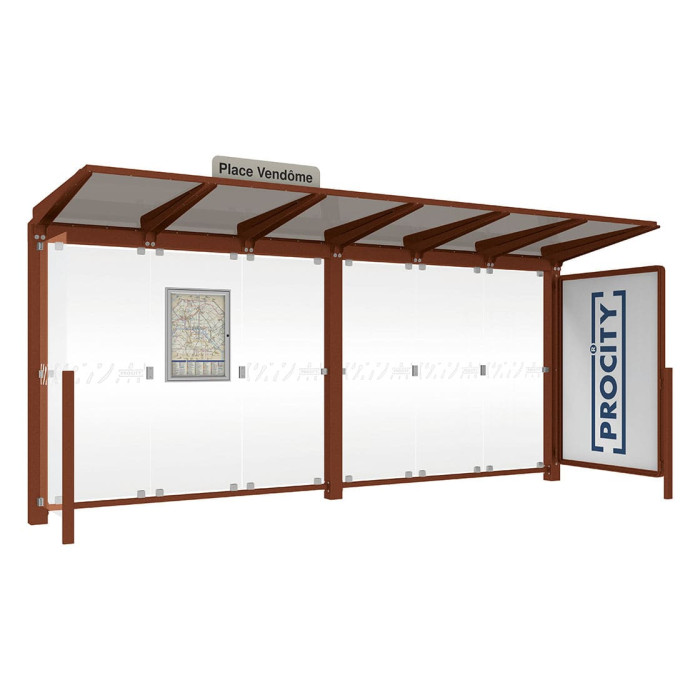

The PROCITY Wartehalle Venedig is a freestanding shelter with a unique style. The rear wall cladding supported by two individual posts ensures unparalleled brightness.
It comes in two lengths: 2500 or 5000 mm, with a total depth of 1500 mm. The square posts are made of steel tube measuring 120 x 120 mm. The height under the roof ranges from a minimum of 2250 to a maximum of 2390 mm. The roof is made of bronze-colored polycarbonate, 8 mm thick, with UV protection treatment. The roof frame consists of transverse beams made of hot-dip galvanized steel. The side and rear cladding are made of Securit glass, 8 mm thick. The cladding is fastened using a clamping system made of brushed aluminum casting. The bus stop sign measures 180 x 815 mm and is made of hot-dip galvanized steel sheet, painted in RAL 9006. The timetable display case measures 750 x 550 mm (4 A4), with a depth of 30 mm, made of anodized aluminum. For information and advertising, you can choose between a lightbox (display area size: 1710 x 1160 mm) or the "2000" display case (display area size: 1750 x 1200 mm). It is available in various RAL colors for hot-dip galvanizing and coating. Installation requires embedding in concrete.
Product Benefits
- Dimensions: Width 5000 x Height 2422 x Depth 1520 mm
- Finish: Painted according to our color palette
- Comes with a "2000" display case and side cladding
- Installation requires embedding in concrete
Technical Specifications
- Length: 5000 mm
- Display Case: Schaukasten 2000 & 1 Seitenverkl.
- Width: 5240 mm
- Height: 2422 mm
- Depth: 1520 mm
- Frame Material: Steel tube 120x120
- Color: Rust Corten Effect
- Roof Material: Bronze PC 8 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Side Cladding: 1 Seitenverkl.
- Lightbox: No
- Display Case: Yes
- Embedding Depth: 665 mm
- Assembly Condition: Disassembled
- Fastening: For embedding in concrete
- Weight(kg): 810
- Accessories: INC-209147
Installation
- Prepare the base for embedding in concrete.
- Assemble the frame according to the provided instructions.
- Install the wall panels and cladding securely.
- Mount the roof as per the assembly manual.
About the Company
We are proud to be an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna for installment payments, and Invoice for approved business customers. Enjoy a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Wartehalle Venedig, 1 Schaukasten 2000 with 1 Seitenverkleidung, L 5240 mm
Shelters
Model Name
Venedig-6.25
Width (W)
5240 mm
Height (H)
2422 mm
Depth (D)
1520 mm
Frame Material
Steel Tube 120x120
Roof Material
PC Bronze 8 mm (UV)
Colour
Corten-Effect Rust
Side Cladding
1 Side Cladding
Display Case
Yes
Mounting
For Concreting
Delivery Cond.
Disassembled
