Description Procity Waiting Hall Venice, 2 Side Panels, L 2620 mm.

PROcity Wartehalle Venedig, 2 Seitenverkleidungen, L 2620 mm.

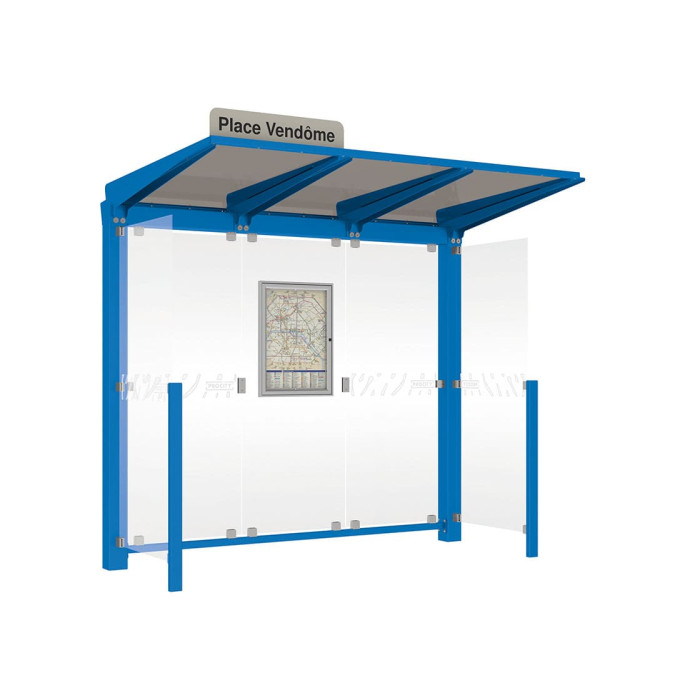

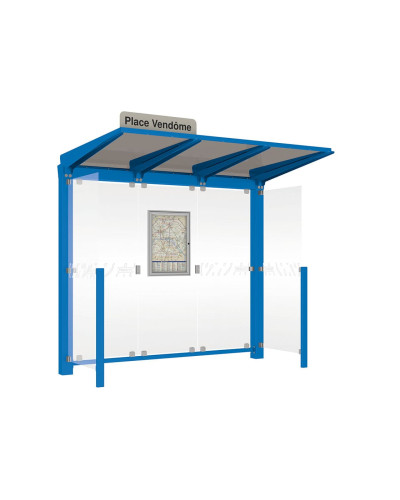

A freestanding shelter with a unique style. The rear wall cladding held by two individual posts ensures unparalleled brightness. Available in two lengths: 2500 or 5000 mm. The overall depth is 1500 mm. The square posts are made of steel tube 120 x 120 mm. The height under the roof ranges from a minimum of 2250 to a maximum of 2390 mm. The roof is made of bronze-colored polycarbonate, 8 mm thick, with UV protection treatment. The roof frame consists of crossbars made of hot-dip galvanized steel. The side and rear cladding are made of Securit glass, 8 mm thick, and are attached using a clamping system made of brushed aluminum casting. The bus stop sign is made of hot-dip galvanized steel sheet, painted in RAL 9006, with dimensions of 180 x 815 mm. The timetable display case measures 750 x 550 mm (4 A4), with a depth of 30 mm, made of anodized aluminum. For information and advertising purposes, it comes with a lightbox (display area size: 1710 x 1160 mm) or a display case "2000" (display area size: 1750 x 1200 mm). It is available in various RAL colors for hot-dip galvanizing and coating. Installation requires embedding in concrete.

Product Benefits

• Dimensions: Width 2500 x Height 2422 x Depth 1520 mm
• Finish: Painted according to our color palette
• Comes with 2 side claddings
• Installation requires embedding in concrete

Technical Specifications

• Length: 2500 mm
• Number of Side Claddings: 2
• Width: 2620 mm
• Height: 2422 mm
• Depth: 1520 mm
• Frame Material: Steel tube 120x120
• Color: Blue RAL 5010 (Enzianblau)
• Roof Material: Bronze PC 8 mm (UV)
• Wall Material: Securit glass 8 mm with sign
• Side Cladding: Yes
• Lightbox: No
• Display Case: No
• Embedding Depth: 665 mm
• Assembly Condition: Disassembled
• Mounting: For embedding in concrete
• Weight(kg): 470
• Accessories: INC-209147

Installation

1. Prepare the base for embedding in concrete.
2. Assemble the frame according to the provided instructions.
3. Install the side and rear claddings as per the manual.
4. Mount the roof onto the frame securely.
