Description Procity Wartehalle Province, Without Seitenverkleidungen, L 2500 mm.

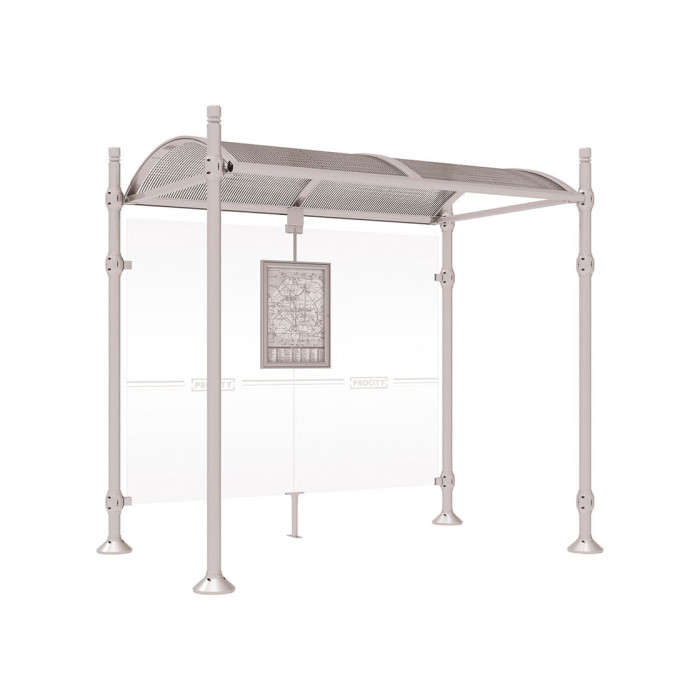

PROCITY Wartehalle Province, ohne Seitenverkleidungen, L 2500 mm

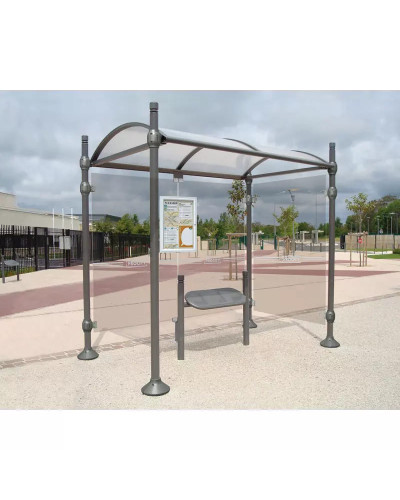

The PROCITY Wartehalle Province is a versatile overhead covering designed for waiting areas. With 4 head models to choose from, as well as various mounting clamps and cover feet, the Province bus stop features a clear visual identity. It forms a harmonious unit with the urban furniture of the same collection.
Available in two lengths: 2500 or 5000 mm, with a total depth of 1600 mm. The round posts are made of 3mm thick aluminum pipe with a diameter of 76 mm, mounted on base plates. The cover feet and mounting clamps are made of die-cast aluminum. The height under the roof is 2500 mm. The roof is made of arched polycarbonate panels, 6mm with UV protection. The roof structure consists of two aluminum tube struts, 40 x 60 mm, and two gutters made of aluminum profile. The brackets are made of curved aluminum profile. The side and rear panels are made of Securit glass, 8mm, and are fastened using an aluminum die-casting clamping system. The timetable display case is 750 x 550 mm (4 A4), 30mm deep, made of anodized aluminum (Art. No. 505045). Information and advertising options include a lightbox (display area size: 1710 x 1160 mm) or "2000" display case (display area size: 1710 x 1200 mm). It comes in various RAL colors for coating and can be mounted on base plates.
Benefits: The dimensions are Width: 2500 x Height: 2545 x Depth: 1733 mm, with 4 different head models to choose from: City, Agora, Kugel, or brushed stainless steel. It is painted according to our color palette and can be assembled on base plates.
Technical Specifications:
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1733 mm
- Frame Material: Aluminum pipe D: 76 mm, 3mm (on plates)
- Color: Grey RAL 7044 (Seidengrau)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Paneling: None
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly State: Disassembled
- Mounting: On base plates
- Weight(kg): 151
- Accessories: INC-509041, INC-529054
Installation:
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall/paneling as per the specifications.
- Mount the roof securely in place.
