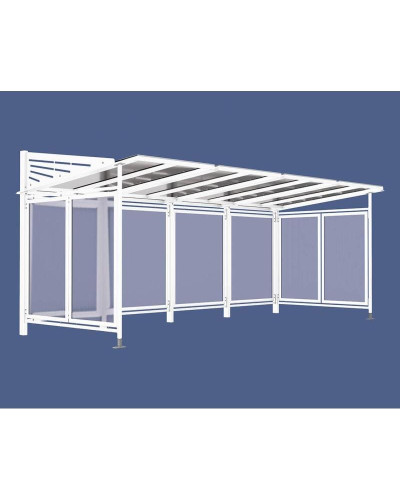

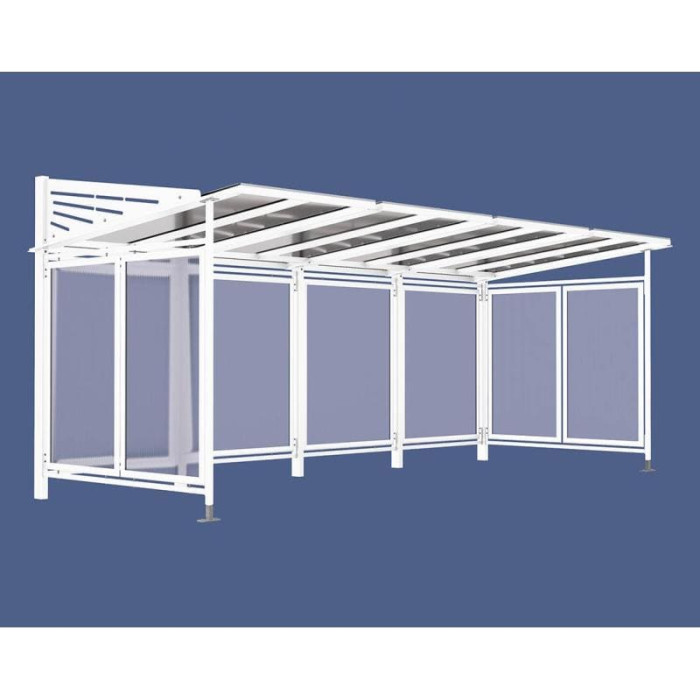

Description Procity Bicycle Shelter
Procity Bicycle Shelter "All-in-One", Base Model with Extension Unit with Back Panel and Side Panels, L 4086 mm
A stylish, modern shelter providing optimized space and protection for bike storage. The dimensions are Width 2700 x Height 2097 x Depth 2323 mm. The structure consists of steel posts 100 x 60 mm and the roof is made of steel beams 50 x 30 mm with UV-resistant 10 mm thick polycarbonate panels. It is hot-dip galvanized and painted according to our color palette. Optional side and back panel coverings are available in aluminum frame and UV-resistant 10 mm thick polycarbonate panels. Installation requires concreting.
Technical Specifications:
- Length: 4086 mm
- Height: 2416 mm
- Depth: 2323 mm
- Parking Capacity: Up to 10 bicycles per module (depending on the type of bike stands or leaning bars)
- Frame Material: Steel Posts 100x60, Front Posts 40x40
- Color: Pure White
- Roof Material: PC Sheet 10 mm (UV)
- Side and Back Panel Material: Aluminum Frame / PC Sheet 10 mm (UV)
- Assembly Condition: Disassembled
- Mounting: Concreting & Hot-Dip Galv. Front Posts on Adj. Plates
- Recommended Embedment Depth: 500 mm
- Weight(kg): 532
- Accessories: INC-529616, INC-529617
Product Benefits:
The PROCITY Bicycle Shelter provides maximum security and vandalism protection through digital access codes and steel grids. Its durable construction and weather resistance ensure perfect integration into any environment. The product is characterized by sustainable manufacturing, long-term cost-effectiveness, modular flexibility, as well as low maintenance and ease of care.
Applications:
Our bike shelter excels in residential complexes, schools, businesses, sports facilities, and public institutions.
Benefits for Various Target Groups:
Our bicycle shelter offers advantages for property owners, school administrations, business leaders, sports facility operators, and municipal administrations.
Color Selection:
The Pure White color allows perfect integration into any environment.
Installation:
- The shelter comes disassembled for easy installation.
- The mounting process requires concreting and hot-dip galvanization of the front posts on adjustable plates.
About the Company:
INCAPCORP is an official PROCITY dealer in Germany. PROCITY products can be purchased from the INCAPCORP online store with fast delivery times and warranty services.
Payment Methods:
We accept credit card, PayPal, Klarna, and bank transfer. A 3% discount is offered for advance payment via invoice. Special conditions are available for bulk orders.
Delivery & Geography:
We offer delivery within Germany and the EU through DPD, GLS, Raben, and other providers. We also provide favorable terms for large orders. Our products are actively used in Germany, Austria, Switzerland, Liechtenstein, the Netherlands, Denmark, Belgium, France, England, and other EU countries with fast and reliable deliveries to these regions.
Main attributes Procity Bicycle Shelter
Shelters
Model Name
CZAH-5
Width (W)
4086 mm
Height (H)
2416 mm
Advertising and Information Module
Without Showcase/Caisson
Depth (D)
2323 mm
Lock Type
No Lock
Configuration
Extension Model
Frame Material
Steel Posts 100x60, Front 40x40
Lighting Type
Without lighting
Parking capacity
up to 10 bicycles for a module (depending on the bicycle stand or bicycle rack chosen).
Roof Material
PC Sheet 10 mm (UV)
Colour
Pure White
Side Cladding
Back Wall + Side Cladding
Mounting
Concreting & Hot-Dip Galv. Front Posts on Adj. Plates
Delivery Cond.
Disassembled
Accessories
INC-529616, INC-529617
