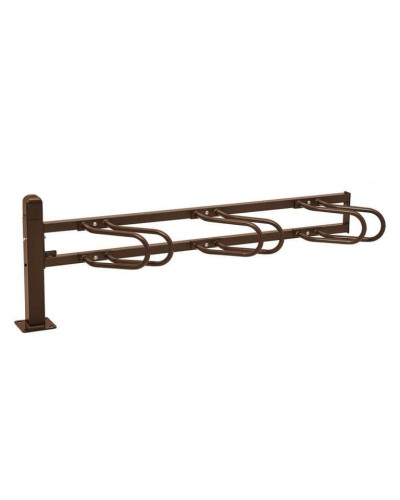

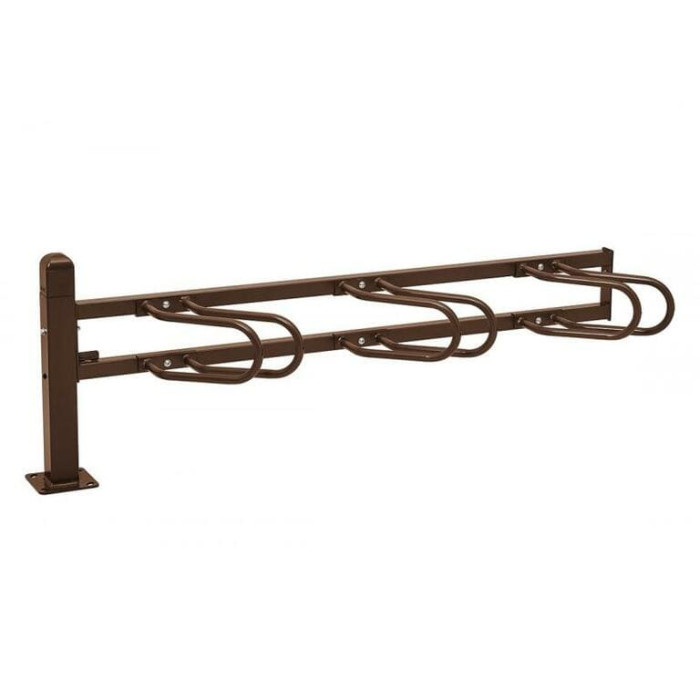

Description Bicycle Rack Convi, Extension, 3 Bicycles, PROCITY: Metal - Chocolate Brown, on Floor Plates.
PROCITY Convi Bicycle Rack Extension, 3 Bicycles: Metal - Chocolate Brown, for Base Plate Mounting
Product Advantages:
- Color: RAL 8017 (Chocolate Brown)
- Structure: Extension module + 3 front wheel holders
- Frame: Steel, 70 x 70 mm and 40 x 40 mm

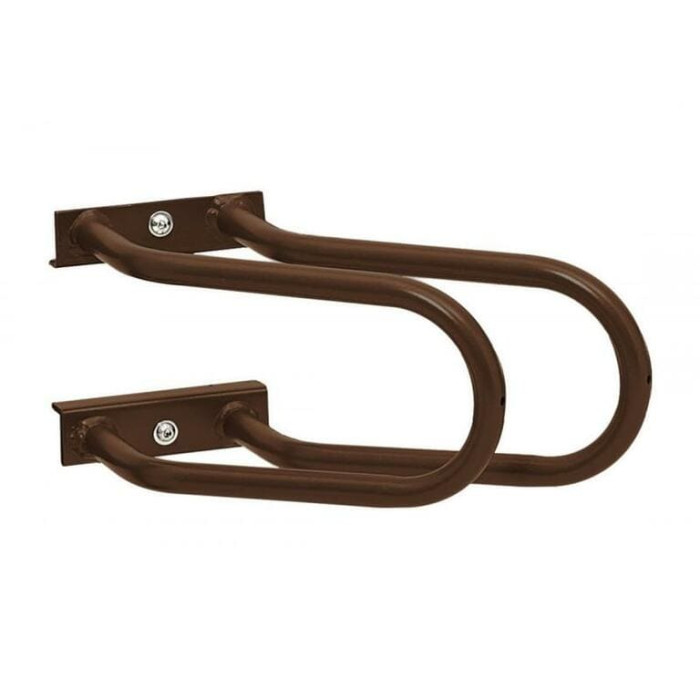

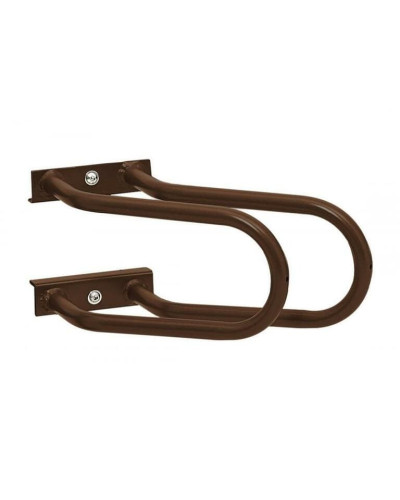

- Front Wheel Holders: ø 22 mm
- Headpiece: Diamond-shaped cast aluminum
- Module: 3 parking spaces, one-sided
- Double-Sided Option: Possible with additional front wheel holders
Product Description:
Thanks to its staggered design, this **Convi bicycle rack** takes up 30% less space on sidewalks and prevents handlebars from colliding. The robust steel construction in a rich **Chocolate Brown** (RAL 8017) provides a durable and aesthetically pleasing solution for bicycle parking.
The company INCAPCORP is an official dealer of PROCITY products, offering high-quality bicycle racks like the Convi.
Technical Specifications:
- Total Height: 575 mm
- Height Above Ground: 575 mm
- Total Width: 1510 mm
- Total Depth: 410 mm
- Material: Steel
- Finish: Galvanized and coated
- Color: Chocolate Brown
- Mounting Type: ON BASE PLATES
- Number of Parking Spaces: 3 bicycles
- Tire Width: 50 mm
- Weight: 22 kg
- Lead Time (Production time in business days): 20
Areas of Application:
This bicycle rack extension is an excellent solution for expanding existing Convi bicycle parking systems. It is an ideal choice for high-traffic areas such as residential complexes, public parks, schools, and corporate campuses where the demand for bicycle parking is growing. The base plate mounting makes it suitable for installation on paved surfaces like concrete or asphalt, providing a quick and secure setup.
Installation Guide:
Professional Installation
For a secure and permanent installation on a hard surface, professional mounting is highly recommended. A professional installer will follow these steps:
- Site Preparation: The installer will determine the precise location and mark the drilling points on the surface.
- Drilling and Anchoring: The installer will drill holes in the marked spots and secure the rack's base plates to the ground using suitable anchor bolts (not included).
- Assembly: The bicycle rack will be assembled and the front wheel holders will be attached to the main frame, ensuring all components are properly tightened. The extension module will be securely connected to the main unit.
- Final Check: A final inspection will be conducted to ensure the rack is securely fastened and stable.
Simple and Safe DIY Installation
A safe DIY installation is possible if you have the right tools. Please note that anchor bolts for mounting are not included.
- Prepare the Area: Choose a suitable location on a solid, level surface. Mark the spots for the mounting holes using the base plates as a guide.
- Drill Holes: Using a hammer drill and a masonry bit, drill holes at the marked locations. Ensure the holes are deep enough for the anchor bolts.
- Mount the Rack: Position the rack over the holes. Insert the anchor bolts and tighten them securely with a wrench. Securely connect the extension module to the existing main unit.
- Verify Stability: Once all bolts are tightened, give the rack a firm push to ensure it doesn't wobble. A secure installation is crucial for durability and safety.
