Description Corner post 22.5 degrees 100x1200 mm made of flexible special plastic for DELTA 3 safety barrier
Corner post 22.5 degrees 100x1200 mm made of flexible special plastic for DELTA 3 safety barrier

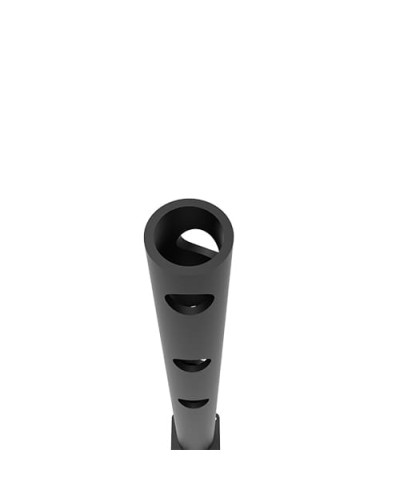

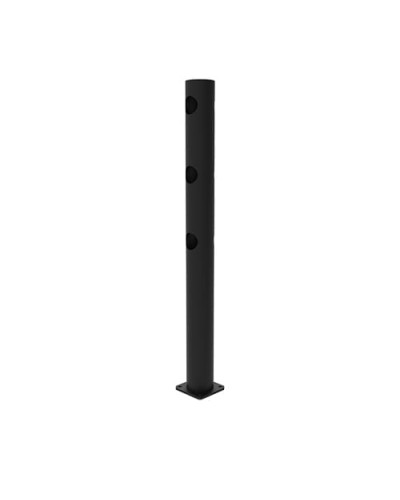

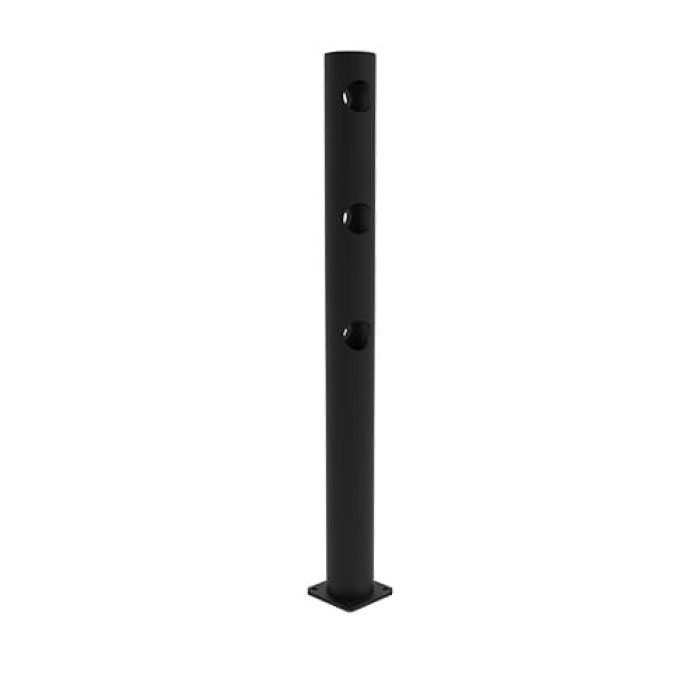

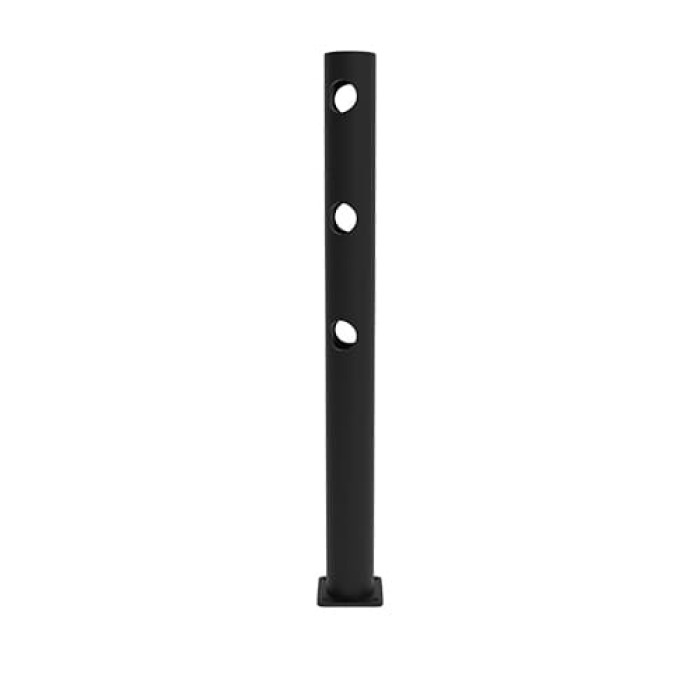

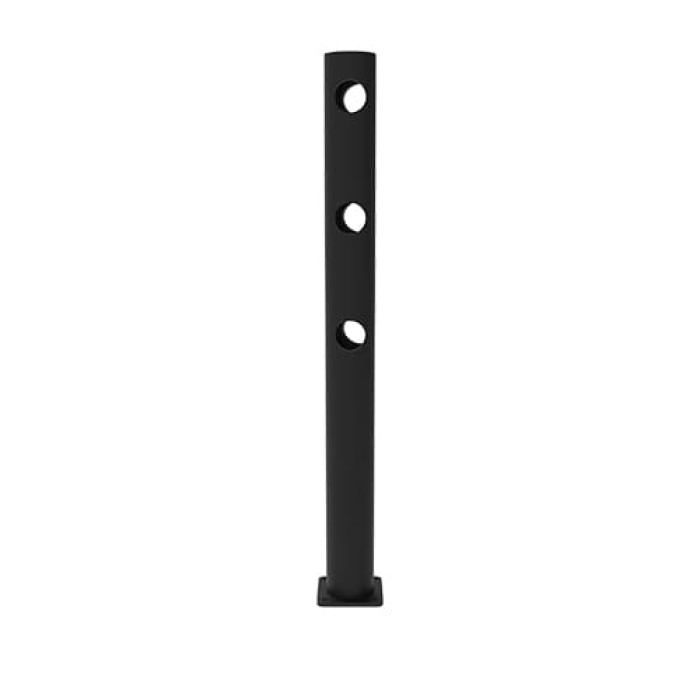

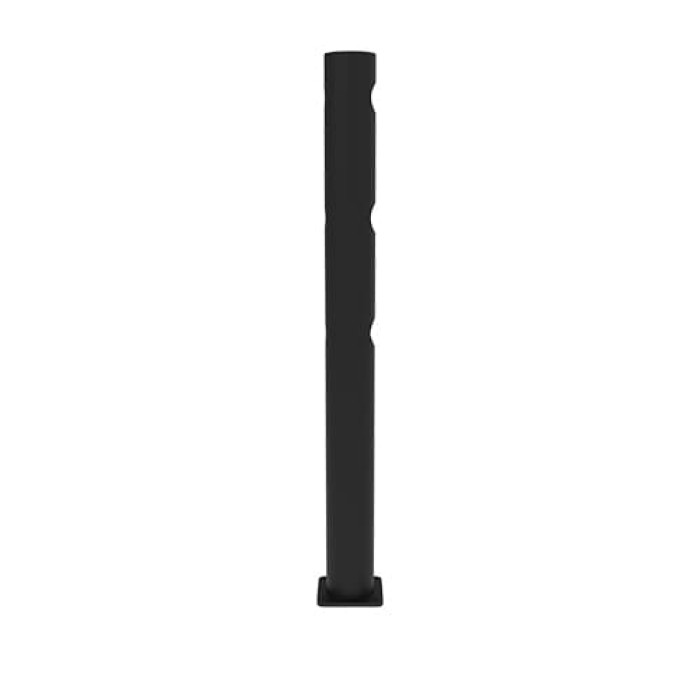

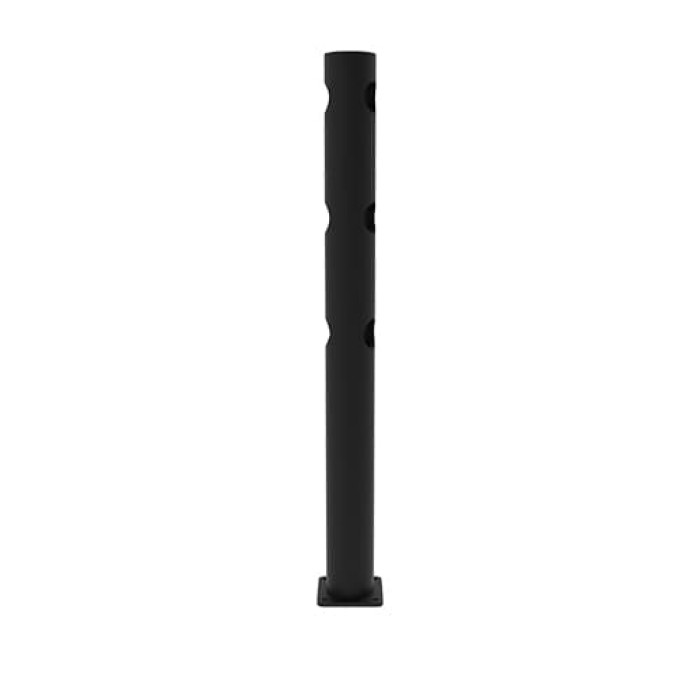

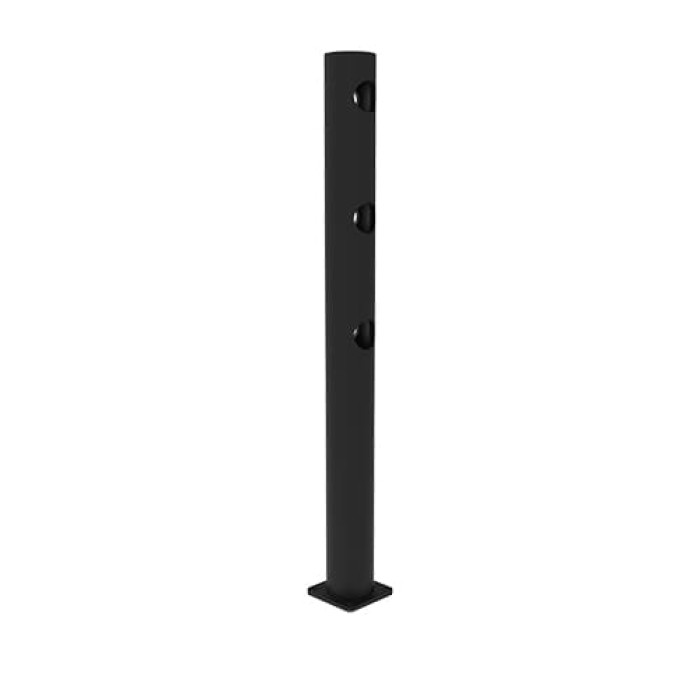

The 22.5 degree corner post is an indispensable component of the DELTA 3 modular safety railing from INCAPCORP. With a diameter of 110 mm and a height of 1200 mm, made of high-quality flexible special plastic, this corner post is specially designed for connecting three tubes with a diameter of 63 mm (not included).

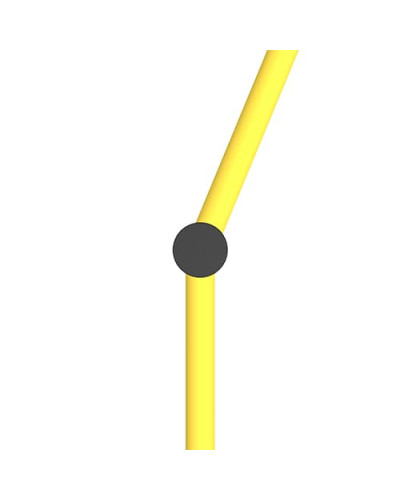

Thanks to its robust construction, the corner post offers optimum protection for machinery, inventory and employees - both indoors and outdoors. Thanks to the flexible angle of 22.5 degrees, various configurations of the safety barrier can be realized effortlessly. Combine the corner post with end, cross, middle and T-posts to create a fully customized safety system.
Advantages at a glance:
- Modular design: Enables individual and customizable configurations to suit your needs.
- High-quality material: Made of polyethylene, robust, durable and flexible.
- Easy to install: Fastened using the M10 x 70 mm concrete screws supplied.
- Safe and reliable: Effective protection of people and objects.
Areas of application:
The DELTA 3 modular safety railing is ideal for demarcating pedestrian and traffic routes as well as for protecting work areas and machinery. Perfect for industrial plants, warehouses or other environments where safety is a top priority.
Technical data:
- Width
(mm): 150
- Height
(mm): 1200
- Depth/Length
(mm): 150
- Net
weight (kg): 7,62
- Material:
Polyethylene
- Colour: black
- Area of
application: indoor and outdoor use
- Mounting
location: paved ground
- Mounting:
bolting
- Number of
mounting holes: 4
- Fixing
included: Concrete screw anchors M10 x 70 mm
- Warranty:
5 years

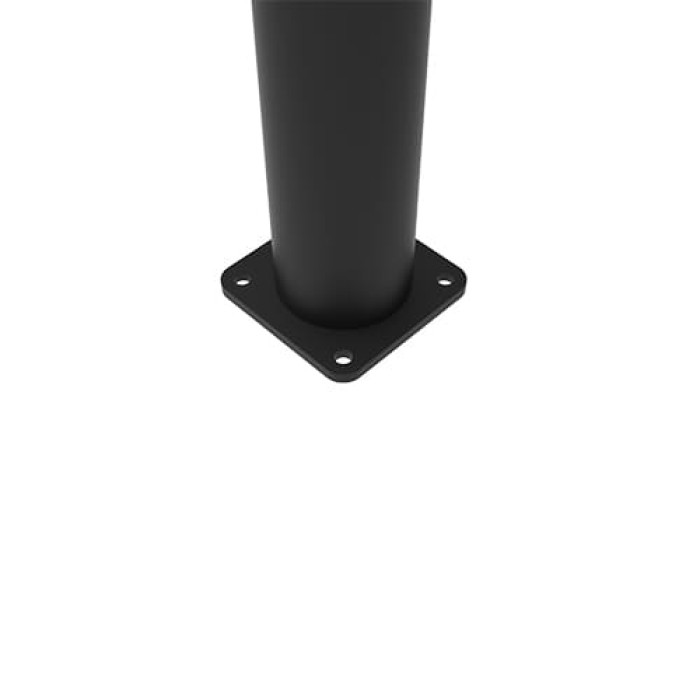

- Foot
plate width (mm): 150
- Foot
plate depth (mm): 150
- Foot
plate height (mm): 10
- Foot
plate colour: black
Fast delivery throughout Germany:
We deliver reliably and quickly to all German cities. Whether Berlin, Hamburg, Munich or smaller cities - you can count on our service.
Ordering and assembly:

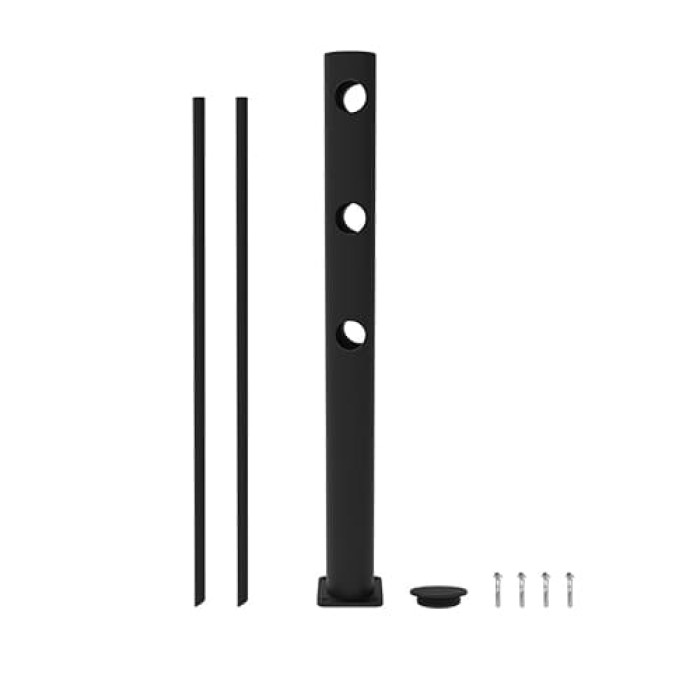

You can easily order the corner post 22.5 degrees in our online store INCAPCORP.DE and pay securely. It is delivered partially disassembled with clear assembly instructions. This makes installation a breeze.
Please note that ordering this product may incur additional shipping costs for bulky height limiters.
