Description Removable Bollard Ø 70 x 70 mm | Triangular Mounting | Red Reflective Tape
Comprehensive Analysis and Application Areas: Removable Bollard Ø 70 x 70 mm with Red Reflective Tape
The implementation of barrier technology is paramount in contemporary urban planning, particularly within industrial zones and private properties. The Absperrpfosten Ø 70 x 70 mm, herausnehmbar Dreikant, mit rot reflektierender Folie serves as a quintessential example of effective barrier solutions that enhance safety and organisation across various environments. These posts are instrumental in delineating traffic areas, securing construction sites, and managing parking spaces. Their robust design ensures that they withstand the rigours of daily use while providing clear visual cues to both pedestrians and drivers.
Safety considerations are at the forefront of urban infrastructure development. The presence of well-placed barriers significantly reduces the risk of accidents by guiding vehicular movement and restricting access to hazardous zones. Furthermore, liability prevention is a critical aspect; properly installed Absperrpfosten can mitigate legal repercussions stemming from accidents or injuries on private property or public roads. The necessity for such barriers is underscored by increasing urban density and the corresponding need for effective traffic management solutions.
Technical Key Features and Structural Advantages

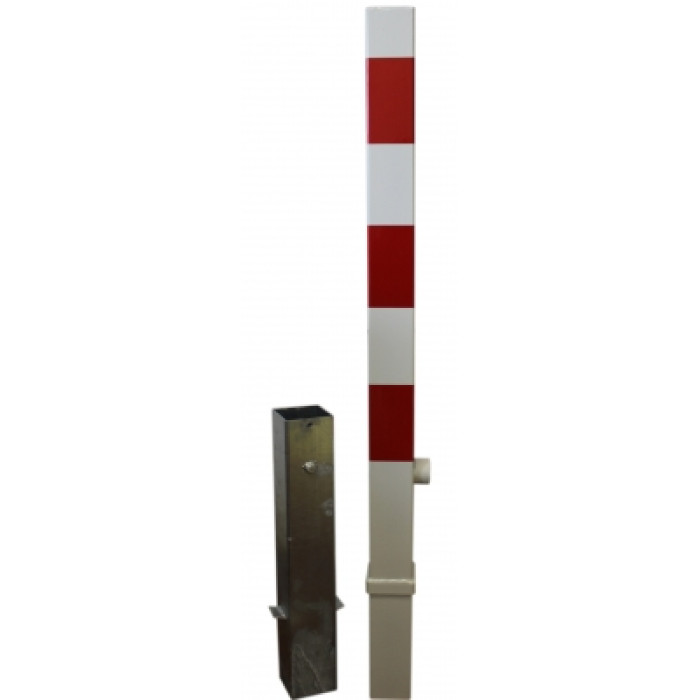

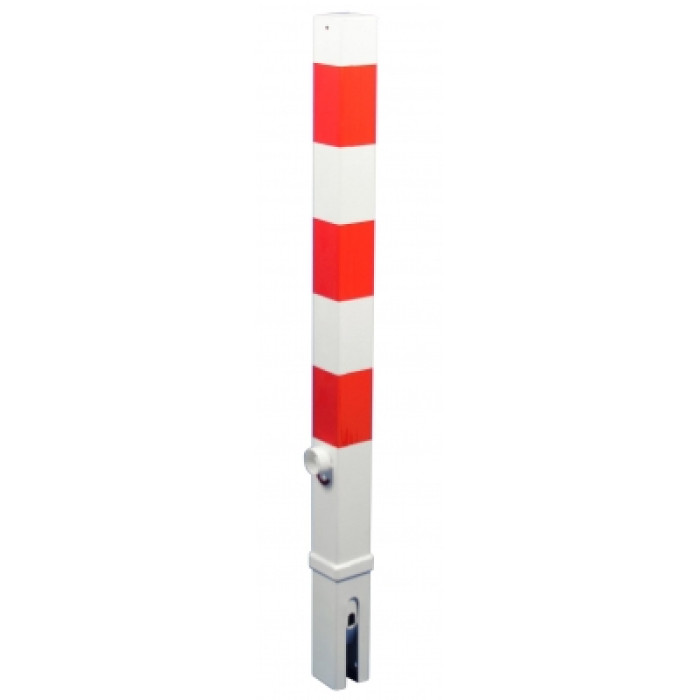

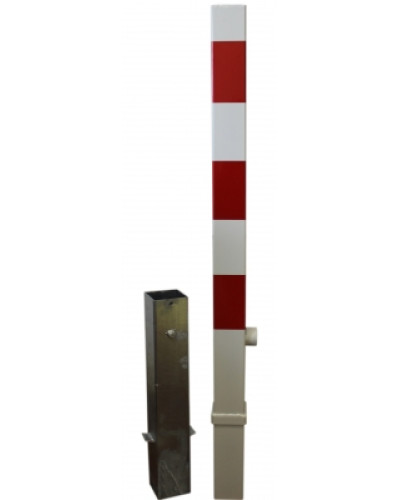

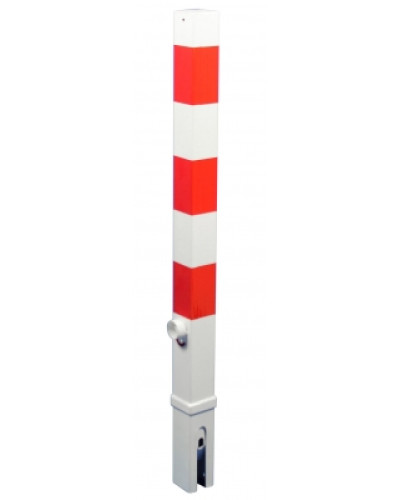

- Constructed from high-quality hot-dip galvanized square steel tube measuring 70 x 70 mm.
- Removable design facilitated by a triangular locking mechanism for ease of use.
- Includes a robust ground sleeve with dimensions of 80 mm x 80 mm x 400 mm for secure installation.
- Available in either standard galvanised finish or white powder-coated with three red reflective film rings for enhanced visibility.
- Total height above ground: 900 mm with a welded cap to prevent water ingress.
- Optional accessories include a triangular key (Order No. INC-6.001) available separately for locking mechanism operation.
- Chain attachment options include one or two eyelets, which can be welded or screw-mounted based on quantity requirements.
Technical Aspects: Structural Integrity and Impact Resistance
The Absperrpfosten Ø 70 x 70 mm is engineered to provide exceptional static load capacity and impact resistance, making it suitable for high-traffic areas where durability is essential. The square cross-section not only enhances stability but also allows for uniform distribution of forces applied during accidental impacts from vehicles or other external factors. This design feature ensures that the post remains upright under significant loads without bending or deforming, thereby maintaining its intended function as a barrier.
The removable nature of the post allows for flexibility in application while ensuring that it can be securely locked into place when needed. The triangular locking mechanism provides an additional layer of security against unauthorized removal while facilitating easy access when required. Furthermore, the ground sleeve's depth (400 mm) contributes to its overall stability by anchoring it firmly within the substrate, thus preventing displacement due to lateral forces or environmental conditions such as wind or frost heave.
Material Quality, Corrosion Protection, and Durability
The Absperrpfosten Ø 70 x 70 mm is fabricated from premium-grade galvanized steel which offers superior corrosion resistance compared to untreated materials. The galvanisation process involves coating the steel with zinc to create a protective layer that prevents rust formation even in harsh weather conditions. Additionally, the white powder coating not only enhances aesthetic appeal but also provides chemical resistance against pollutants commonly found in urban environments.
The total length of 1400 mm plays a crucial role in ensuring ground stability; this extended length allows for deeper embedding into the substrate which is vital for frost protection during colder months. This feature mitigates risks associated with ground movement due to freeze-thaw cycles that could compromise structural integrity over time. Moreover, the red reflective film adheres to safety regulations by ensuring high visibility during low-light conditions, thus enhancing safety measures in both public and private settings.
Installation, Maintenance, and FAQ
The installation process for the Absperrpfosten Ø 70 x 70 mm involves concreting-in the provided ground sleeve into an appropriate substrate to ensure maximum stability and longevity. It is recommended that this process be conducted during dry weather conditions to allow proper curing of concrete around the sleeve. Regular maintenance should include inspections for any signs of damage or corrosion; cleaning procedures can be performed using mild detergents followed by rinsing with water to remove dirt accumulation without compromising protective coatings.
This product exhibits excellent weather resistance due to its galvanized finish; however, periodic checks are advisable especially after severe weather events to ensure continued functionality and appearance integrity over time.
